Steel Amazon gutters and guttering components from Magna Buildings.
Galvanised Steel Amazon Gutters
We supply from stock our own designed and built galvanised steel guttering system especially designed for agricultural,
equestrian and industrial buildings.
MAGNA BUILDINGS Ltd
Cattle troughs.Doors.Equestrian buildings.Grain stores.Gutters and guttering.
Industrial buildings.Livestock buildings.Purlins and cleats.Silage clamps.Stable fittings.Magna Buildings home page.

Galvanised steel guttering and brackets, overflows and end stops. External Amazon replacement gutters.

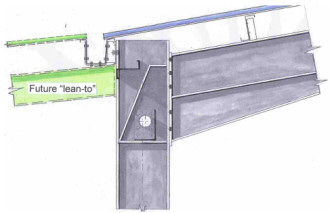

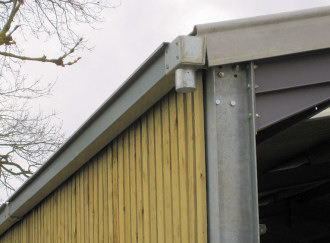

The Amazon galvanized steel guttering is an external eaves gutter, however, it is designed so that a lean-to can be easily added in the future.
The brackets are fixed to the stanchions (max. 20' centres) with no support brackets in between. This means less joints.
The larger flow capacity of these gutters means less downpipes, saving on underground drainage and easier for rainwater harvesting.
The galvanised steel guttering can be used for agricultural, equestrian, industrial
buildings and barns.
The Amazon galvanised steel gutter is made in two sizes:
Amazon type A gutters and guttering.

Type A gutter. 		Amazon type B gutters and guttering.

Type B gutter. 		The Amazon guttering has a much larger flow capacity than the plastic and fibre cement gutters normally used on farm buildings.
150mm half round:
Flow capacity 140 litres/min.
Max area of roof 110 sq. m.

200mm half round:
Flow capacity 280 litres/min.
Max area of roof 220 sq. m.
Flow capacity 280 litres/min.
Max. roof area drained 220 sq. m. 		Flow capacity 470 litres/min.
Max. roof area drained 350 sq. m. 		All figures approximate guidelines applicable to external eaves gutters where occasional overflow can be tolerated.

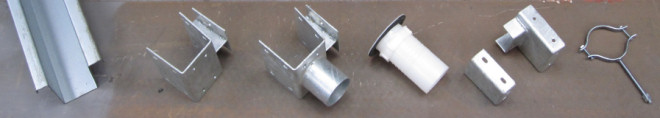

Gutter and guttering brackets, outlets, end stops and overflows.
All prices + V.A.T.
  2mm gutter
£ per lin. m. 		5mm plain
bracket 		5mm outlet
bracket 		Loose plastic
outlet 		4mm
end stop 		Stop end
with
overflow 		Rainwater
pipe
bracket
Type A
gutter 		P.O.A.     N/A   N/A
Type B
gutter		 P.O.A.   N/A
Type A: stock lengths to suit 15' (4.5m) and 20' (6m) bay centres.
Type B: stock lengths to fit 20' (6m) bay centres.
Bracket prices include nuts, bolts, washers and sealant.
